Hospital Care

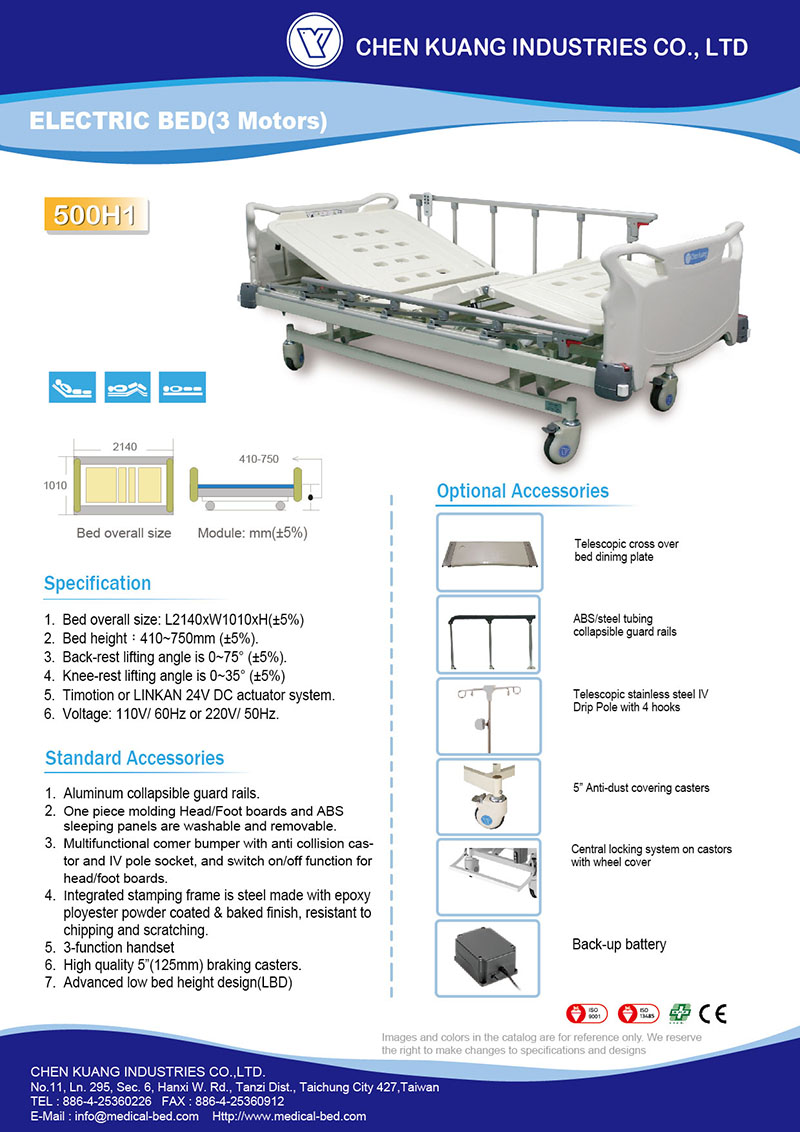

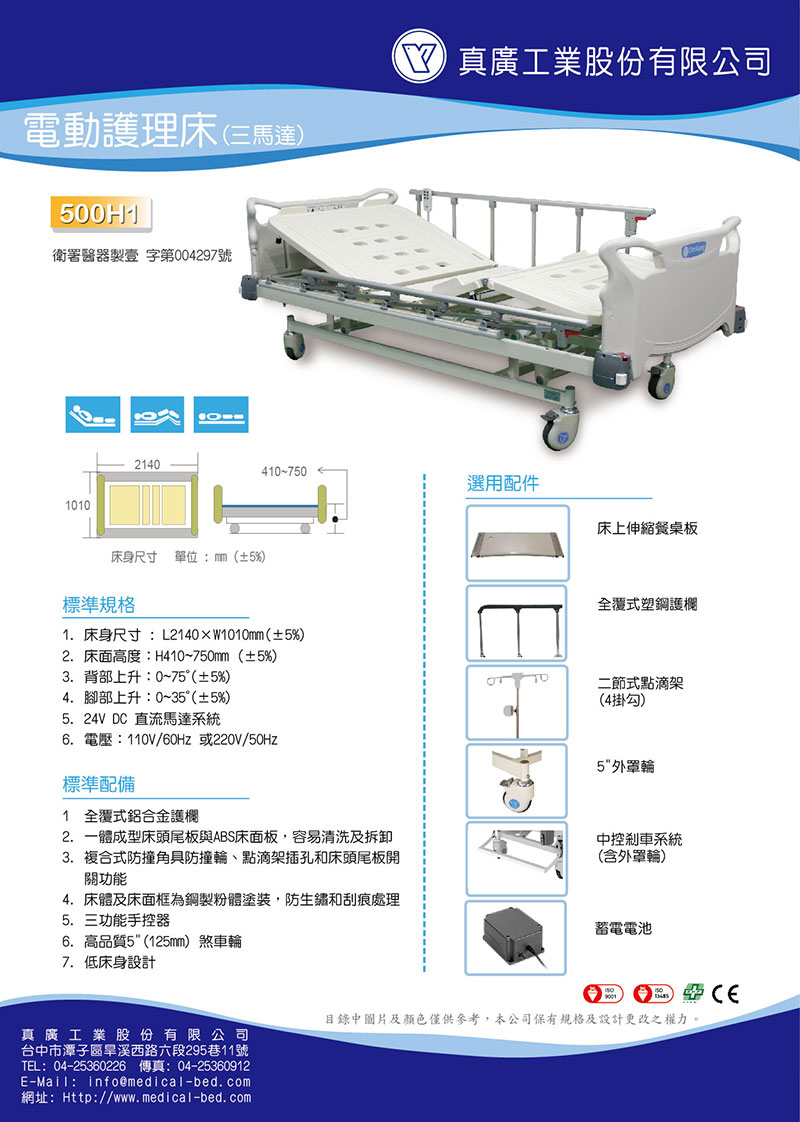

500H1 (3 Motors Electric Bed)

Feature of 500H1:

  • Molding bed top and integrated head foot board made by plastic ABS, durable and detachable.
  • Easy to maintain and clean which reduces hospital staff working time.
  • Collapsible aluminum side rail is designed to assist caregiver in providing a superior patient care and detachable feature for easy maintenance.
  • Excellent bed low height is designed to help elder patient getting into and out of the bed. Excellent design of actuator system with lowest noise and stable quality, approved by UL and CE safety standard,meets stringent international quality and safety standards, and contains important safety features, to assist the care giver in providing superior patient care!

1 function head  2 function foot.jpg  height postion adjustment icu tilt electric hospital medical health care bed e4p ha4 t chen kuan


Specification of 500H1:

  1. Bed overall size:L2140xW1010mm (±5%)
  2. Bed height:410~750mm (±5%)
  3. Back-rest lifting angle is 0~75° (±5%)
  4. Knee-rest lifting angle is 0~35° (±5%)
  5. 24V DC actuator system.
  6. Voltage: 110V/ 60Hz or 220V/ 50Hz


Standard accessories of 500H1:

  1. Aluminum collapsible guard rails.
  2. One piece molding Head/Foot boards and ABS sleeping panels are washable and removable.
  3. Multifunctional comer bumper with anti collision castor and IV pole socket, and switch on/off function for head/foot boards.
  4. Integrated stamping frame is steel made with powder coated, resistant to chipping and scratching.
  5. 3-function handset.
  6. High quality 5”(125mm) braking casters.


Optional accessories of 500H1:

  1. adjust abs board table electric hospital medical care bed health nursing long care bed eal hs3

    Telescopic cross over bed dining plate

  2. abs cover bedside safety guard rail electric hospital medical health nursing care bed eal hs3

    ABS tubing collapsible guard rails

  3. height adjustable 2 joint telescoping iv pole hooks electric hospital medical care bed eal hs3

    Telescopic stainless steel IV Drip Pole with 4 hooks

  4. anti Dust cover caster brake wheels electric hospital medical health nursing care bed eal hs3

    5” Anti-dust covering casters

  5. central control brake foot plate lock caster brake wheels hospital medical health care bed eal hs3

    Central locking system on castors with wheel cover

  6. rechargeable storage battery electric hospital medical care bed long term nursing care eal hs3

    Back-up battery

  7. waterproof bed mattress waterproof cloth cover high density wave foam medical care bed eal hs3



  • If you need better function from electric operation of hospital & Nursing Medical-Care beds, you may refer to the model type 600H2-A   electric operation of hospital & Nursing Medical-Care beds.
  • Product Warranty Statement.
