Feature of SS330-C1：

• SS330-C1 Emergency Stretcher is designed for hospital emergency room purpose purpose.
• It has complete functions, head rest is adjusted by twin gas springs, knee rest adjusted by one manual crank and hi/lo adjusted by twin hydraulic systemm.
• Head part has X-ray translucent back rest with cassette holder.
• The trendelenburg and rev. trendelenburg is operated by hydraulic foot pedal.
• The stretcher assembled with 8" anti-static castor with lockable and steering function.
• Excellent designed of ABS tubing collapsible safety guard rail, assist patients and care giver in comfortable environment.

Specification of SS330-C1：

1. Overall Length: 213cm(±5%)
2. Overall Width: 84cm(±5%)
3. Safe Working Load: 310kg(±5%)
4. High: 89cm (±5%)
5. Low: 54cm (±5%)
6. Backrest: 0-80˚ (±5%)
7. Trend./ Reverse Trend: 18˚(±5%)
8. Patient Platform: 195*66cm(±5%)
9. Siderails: 126*42cm(±5%)
10. Knee rest: 0-40˚ (±5%)

Standard accessories of SS330-C1：

1. Integrated storage tray with oxygen bottle holder.
2. Trend./Reverse Trend.
3. Hydraulic device controlled by foot pedals at both sides of stretcher.
4. Structure with two columns.
5. Drainage Bag clasp x 2
6. Four wheel brake pedal/steer pedal in two ends of bed.
7. IV pole inserted hole x 4
8. Wheel Cover (ABS).
9. Aluminum Collapsible side rail.
10. Delivery Push Bar at the head end.
11. Dual gas springs for backrest lifting.
12. Two stages movable IV pole x 1.
13. Two stages fixed foldable IV pole x 1.
14. 8”(20cm) wheel(CATIS).
15. Foot-end auxiliary push bar.
16. Restraint straps with Velcro.
17. Protective corner bumpers x 4.
18. 3” (7cm) mattress or more.

Optional accessories of SS-330-C1：

1.

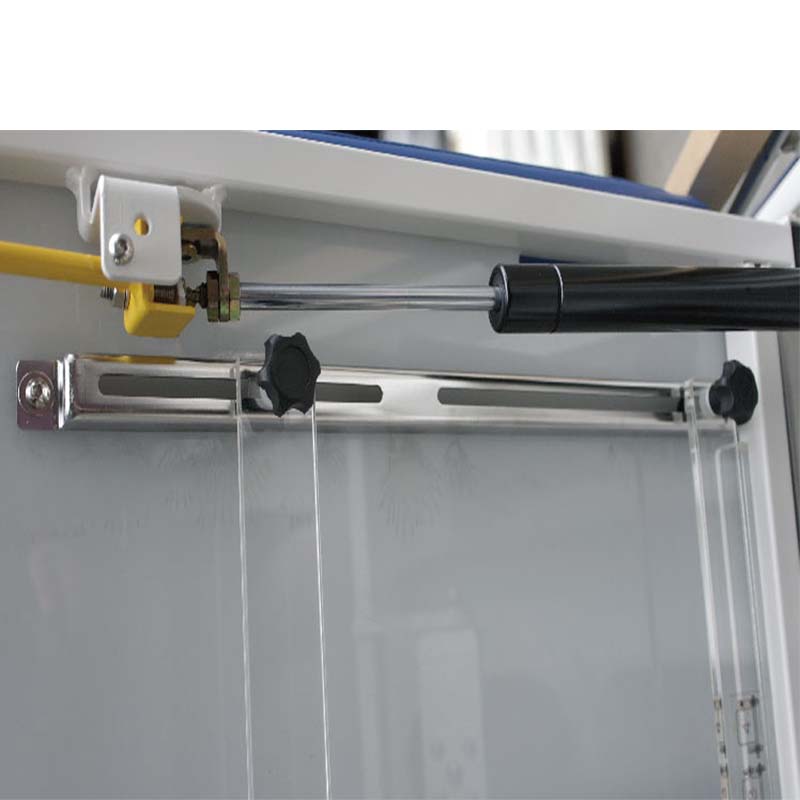

   X-ray translucent back rest with cassette holder.

2.

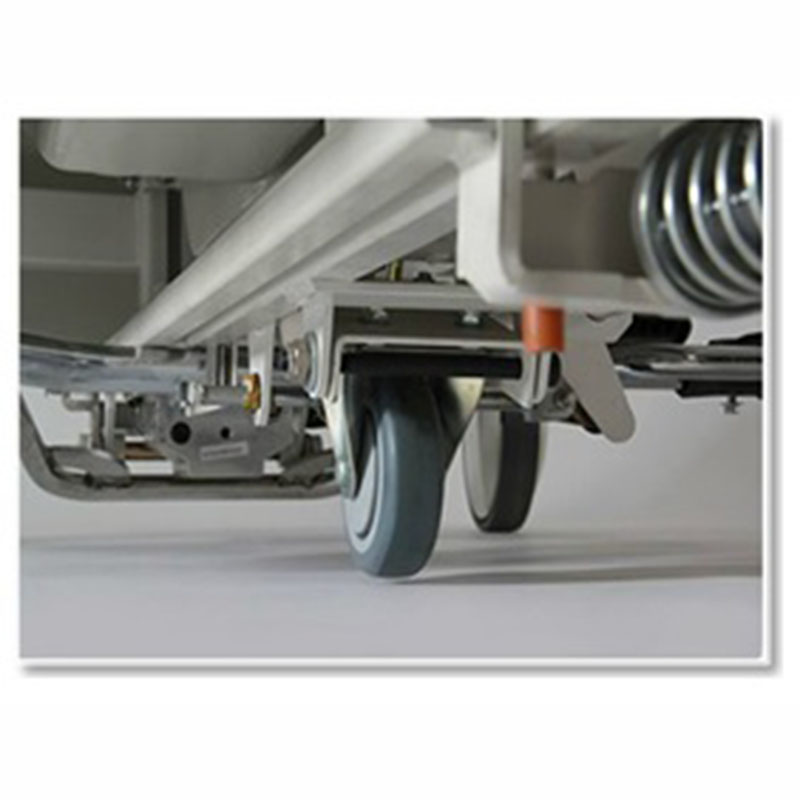

   IInstall the fifth steering wheel of Nursing Emergency stretcher Steel transport trolley.
