Nursing Care

Feature of SS888-FM：

• International Patent Certification.

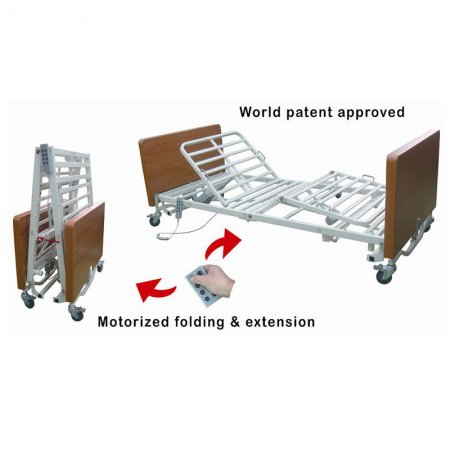

• Motorized folding & extension.
• 4motors with 7 functions.
• one touch to folding/unfolding easy to assemble, easy to storage.
• the lowest height of bed is 30cm matching .ergonomics.
• Packing size is only a quarter of general bed, easy to deliver for saving money
• Suitable for often changing the user's location/for leasing /spare bed.

Specification of SS888-FM：

1. Overall size : L2140×W950mm(±5%)
2. Height ：H310~710mm(±5%)
3. Folding size : L440 x W950 x H1240mm(±5%)
4. Height Range adjustment：400mm(±5%)
5. Back-rest lifting：0~70° (±5%)
6. Knee-rest lifting：0~35° (±5%)
7. Trendelenburg and Rev. trendelenburg：0~10°(±5%)
8. Automatic disassembly & expansion system.
9. Automatic assembly & folding system.
10. 24V DC actuator system (CE & UL approval)
11. Voltage: 110V/ 60Hz or 220V/ 50Hz.
12. Safe working load : 230 kgs

Standard accessories of SS888-FM：

1. Head/Foot boards are made by timber, easy assembly and removable.
2. Integrated stamping frame is steel made with epoxy polyester powder coated & baked finish, resistant to chipping and scratching.
3. 7-function handset.
4. High quality 4” braking castor.
5. All parts are made by tooling to ensure uniform quality.

Optional accessories of SS888-FM：

1.


   Overbed table

2.


   Two sectional IV pole with 4 hooks

3.


   Lifting Bar

4.


   Backup battery

• If you want to choose delicate wooden bedside safety Guard-Rails design, please refer to the link of SS888-U1 :  Electric device with collapsible design by four motors operation to control tilt /inclination position from home care & household Nursing Medical-Care beds series (4 Motors System)
• Product Warranty Statement.
